Acoustic slat wall panels
Wood slat panels on a dense acoustic felt backing that cut echo in lobbies, amenity rooms and suites. 79 finishes in real wood veneer, PVC film and melamine, quoted with your doors and trim.
- Class ASound absorption, EN ISO 354
- E0Formaldehyde class, EN 717-1
- 2400 × 600 mmStandard panel, 21 mm thick
- 79 finishesVeneer, PVC film, melamine and more
Technical wood veneer
Real wood veneer, re-composed from a natural core species. It keeps the true grain of the wood but is more consistent in colour and pattern than natural veneer and generally free of knots. More vivid and authentic than melamine, PVC film or HPL, and the most cost-effective real-wood face. 10 finishes shown.
- Standard sizes
- 2400, 2700, 2900 × 600 × 21 mm
- Available
- Square edge · Arc edge · 45° bevel · 1-side cover · 3-side cover
-
Natural Oak TV001
A light, warm oak.
Technical veneer · Square, arc or 45° bevel edge
Add to my quote -
Teak TV002
A golden mid-brown teak.
Technical veneer · Square, arc or 45° bevel edge
Add to my quote -

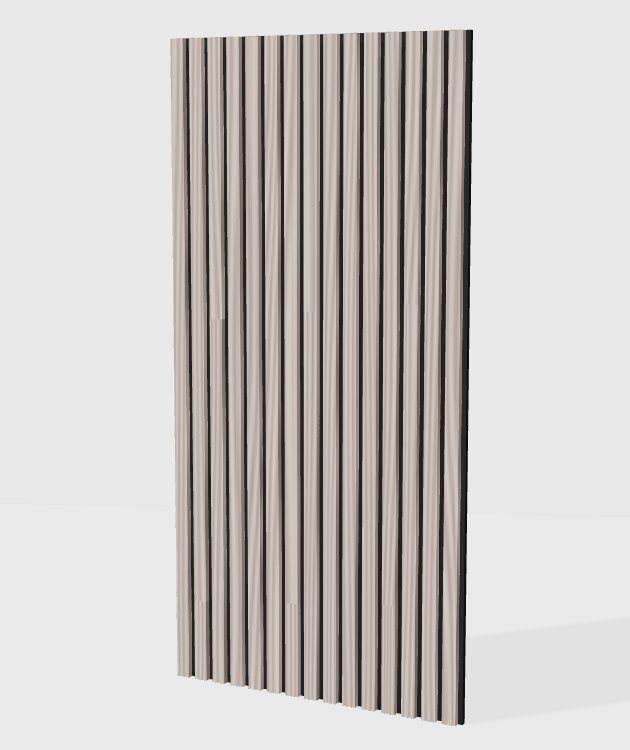

Light Walnut TV003
A soft, greyed walnut.
Technical veneer · Square, arc or 45° bevel edge
Add to my quote -
European Walnut TV004
A pale walnut with a pink undertone.
Technical veneer · Square, arc or 45° bevel edge
Add to my quote -

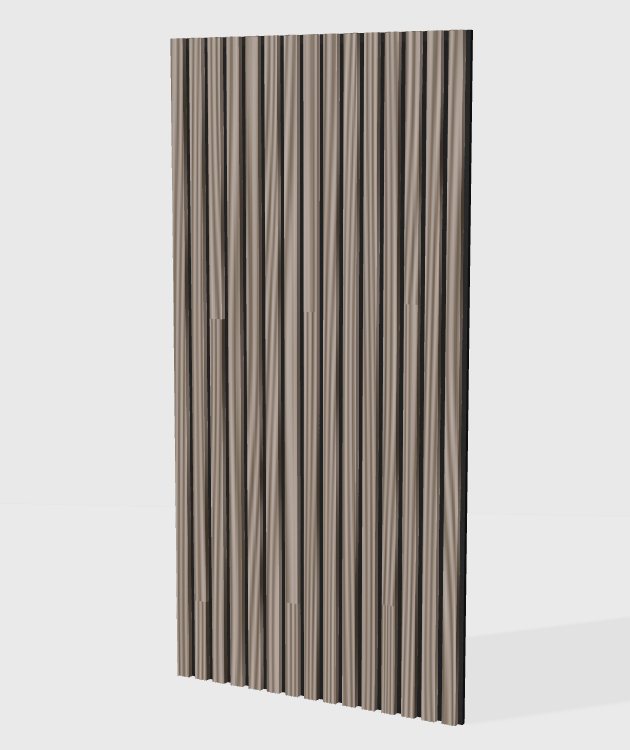

Dark Walnut TV005
A deep chocolate walnut.
Technical veneer · Square, arc or 45° bevel edge
Add to my quote -
Smoke Oak TV006
A smoked mid-brown oak.
Technical veneer · Square, arc or 45° bevel edge
Add to my quote -

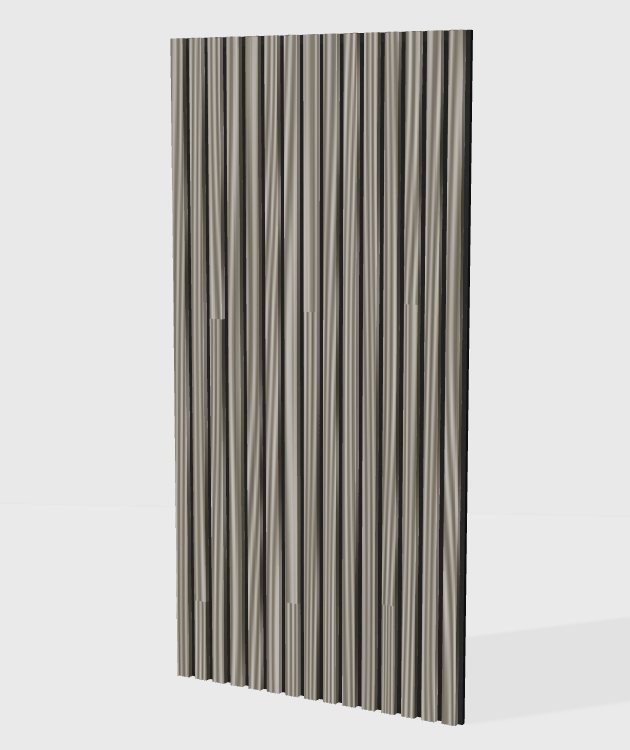

Dark Smoke Oak TV007
A dark smoked oak with strong grain.
Technical veneer · Square, arc or 45° bevel edge
Add to my quote -

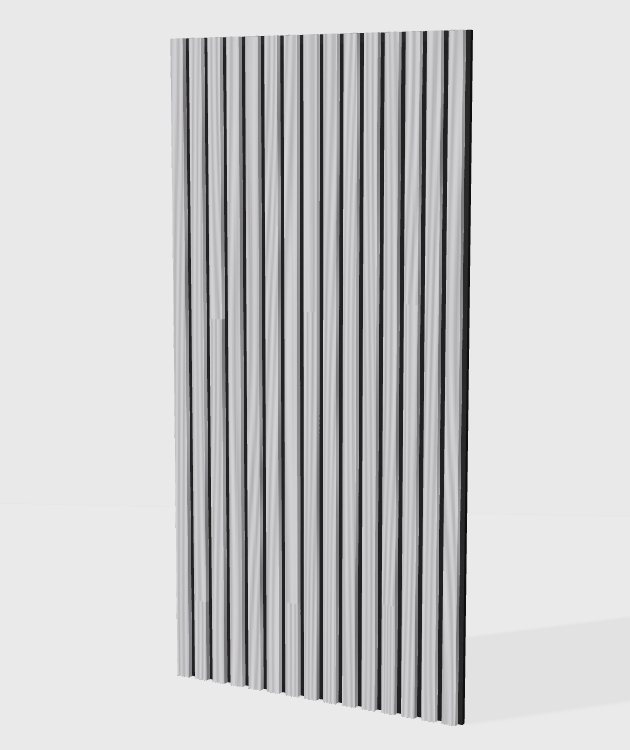

Light Grey Oak TV008
A pale grey-washed oak.
Technical veneer · Square, arc or 45° bevel edge
Add to my quote -
Dark Grey Oak TV009
A charcoal grey oak.
Technical veneer · Square, arc or 45° bevel edge
Add to my quote -
Black Oak TV010
A near-black oak with visible grain.
Technical veneer · Square, arc or 45° bevel edge
Add to my quote
Natural wood veneer
A thin leaf sliced straight from the log (flitch) of a tree, so every panel carries the authentic grain of its species and no two are identical. The most authentic and the most premium face. 10 finishes shown.
- Standard sizes
- 2400, 2700, 2900 × 600 × 21 mm
- Available
- Square edge · Arc edge · 45° bevel · 1-side cover · 3-side cover
-
-
Red Oak NV002
A red-toned oak with open grain.
Natural veneer · Square, arc or 45° bevel edge
Add to my quote -
Ash NV003
A light ash with long, straight grain.
Natural veneer · Square, arc or 45° bevel edge
Add to my quote -
Red Beech NV004
A pinkish beech with a fine grain.
Natural veneer · Square, arc or 45° bevel edge
Add to my quote -
Walnut NV005
A classic medium walnut.
Natural veneer · Square, arc or 45° bevel edge
Add to my quote -
-

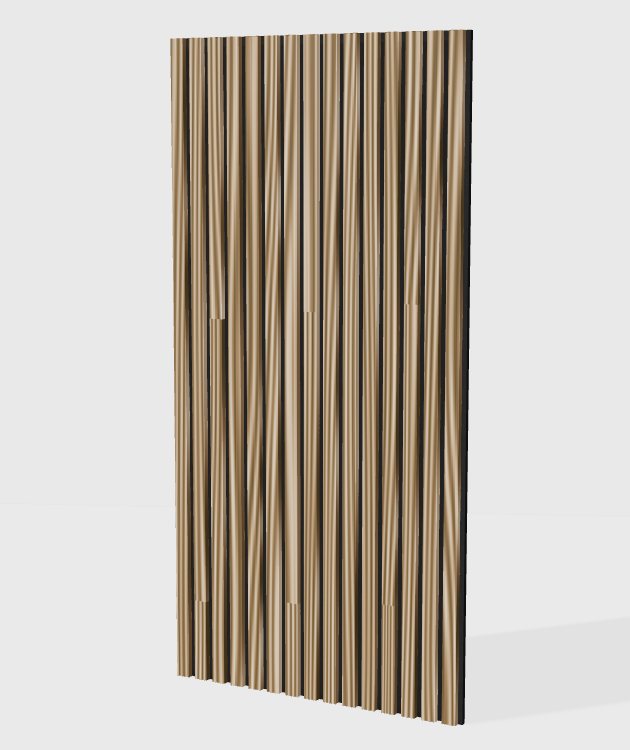

Light Smoke Oak NV007
A lightly smoked oak with dark streaks.
Natural veneer · Square, arc or 45° bevel edge
Add to my quote -

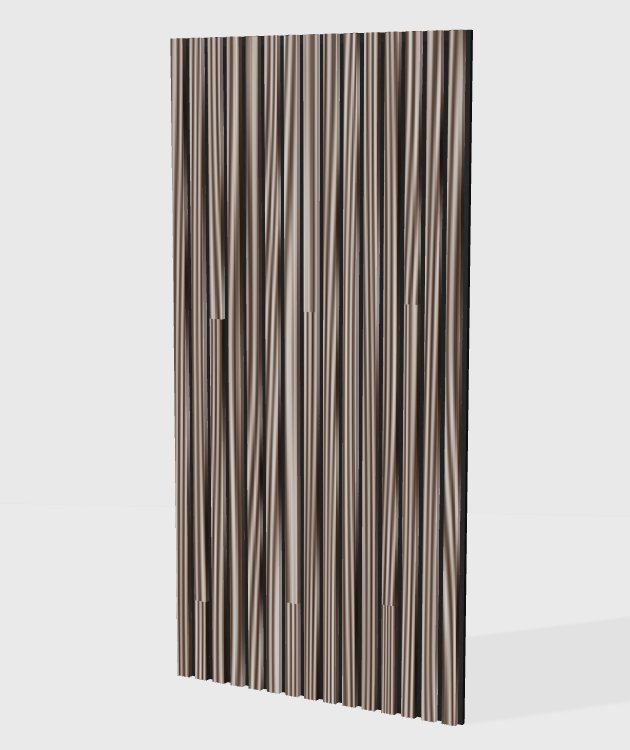

Dark Smoke Oak NV008
A dark smoked oak with strong grain.
Natural veneer · Square, arc or 45° bevel edge
Add to my quote -
-
Black Oak NV010
A near-black oak with visible grain.
Natural veneer · Square, arc or 45° bevel edge
Add to my quote
PVC film, wood grain
PVC film printed with a wood grain. It reads strongly as wood, can stand in for high-grade timber, and works in any room. Thousands of grains are available beyond those shown, including oak, walnut, maple, beech, ash, birch, pine, rosewood, sandalwood and teak. 10 finishes shown.
- Standard sizes
- 2400, 2700, 2900 × 600 × 21 mm
- Available
- Square edge · Arc edge · 45° bevel · 1-side cover · 3-side cover
-
Sandalwood PW001
A greyed brown wood grain.
PVC wood grain · Square, arc or 45° bevel edge
Add to my quote -
-
Boxwood PW003
A warm honey wood grain.
PVC wood grain · Square, arc or 45° bevel edge
Add to my quote -

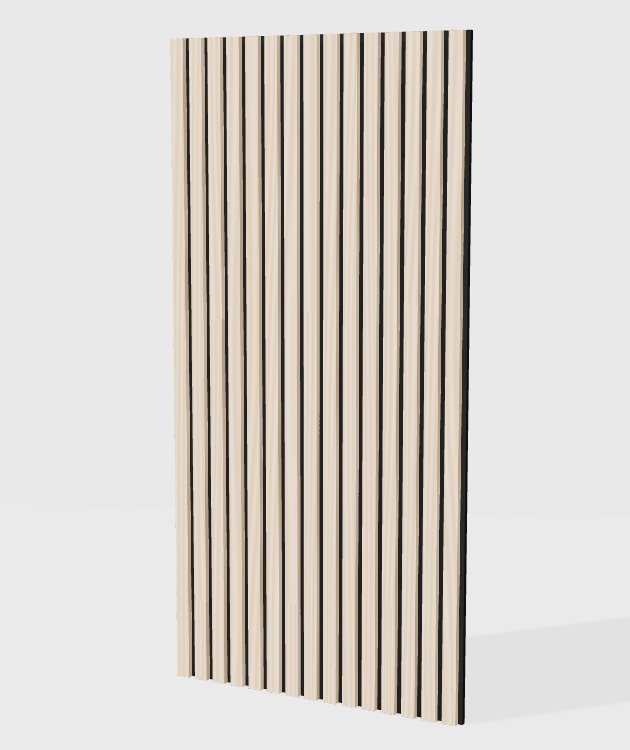

Yellow Walnut PW004
A pale yellow walnut grain.
PVC wood grain · Square, arc or 45° bevel edge
Add to my quote -

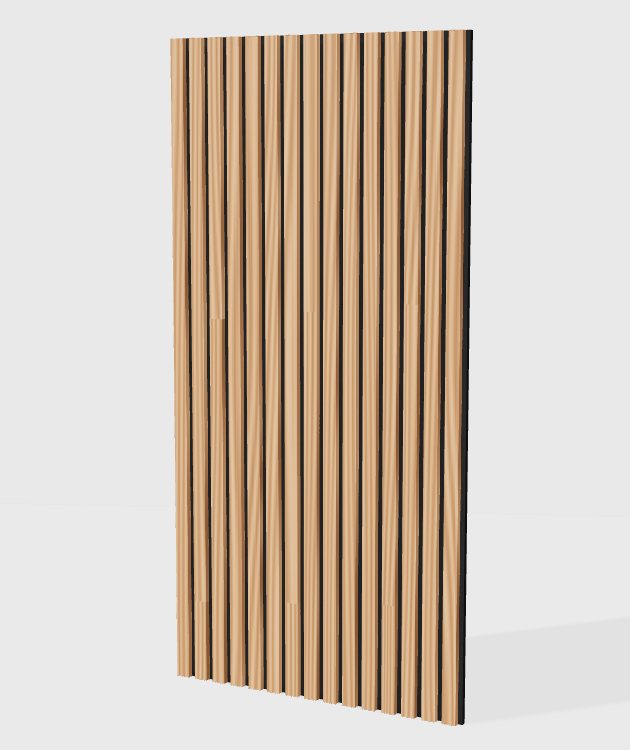

Hickory PW005
A rich amber hickory grain.
PVC wood grain · Square, arc or 45° bevel edge
Add to my quote -
Maple PW006
A soft brown maple grain.
PVC wood grain · Square, arc or 45° bevel edge
Add to my quote -
Ebony PW007
A copper-brown wood grain.
PVC wood grain · Square, arc or 45° bevel edge
Add to my quote -
Platane Wood PW008
A dark plane-tree wood grain.
PVC wood grain · Square, arc or 45° bevel edge
Add to my quote -
Brown Walnut PW009
A dark brown walnut grain.
PVC wood grain · Square, arc or 45° bevel edge
Add to my quote -
Grey Engineer Wood PW010
A slate grey wood grain.
PVC wood grain · Square, arc or 45° bevel edge
Add to my quote
PVC film, solid colours
Flat, even colours that create a calm, focused space. Any tone can be made, from white through green, grey, blue, yellow and orange to black. Common in offices, libraries and children’s rooms. 10 finishes shown.
- Standard sizes
- 2400, 2700, 2900 × 600 × 21 mm
- Available
- Square edge · Arc edge · 45° bevel · 1-side cover · 3-side cover
-
-
-
-

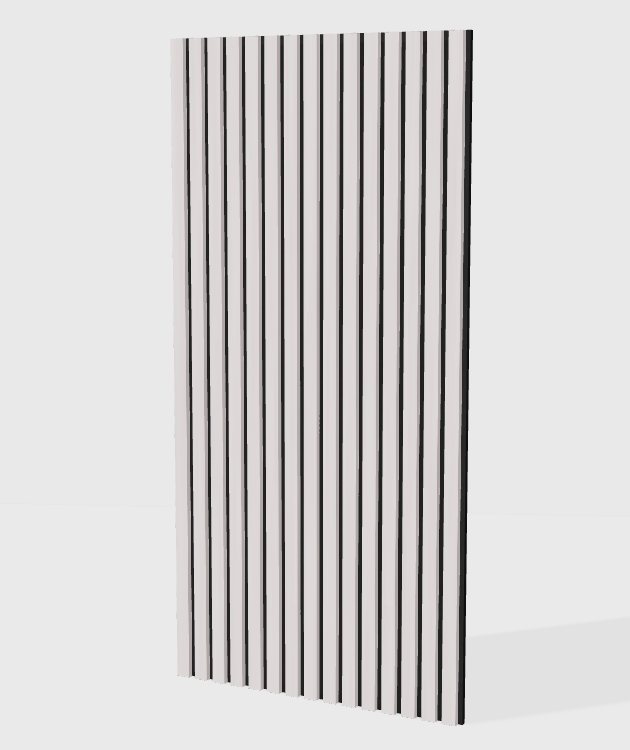

Taro Purple PC004
A muted lilac grey.
PVC solid colour · Square, arc or 45° bevel edge
Add to my quote -
-
-
-
-
Elegant Grey PC009
A warm mid grey.
PVC solid colour · Square, arc or 45° bevel edge
Add to my quote -
PVC film, marble and stone
Marble, stone and cement looks for a fraction of the cost and weight of real stone. Many designs and tones are available, including rock grain, cement, Pandora and fishbelly grey. 10 finishes shown.
- Standard sizes
- 2400, 2700, 2900 × 600 × 21 mm
- Available
- Square edge · Arc edge · 45° bevel · 1-side cover · 3-side cover
-

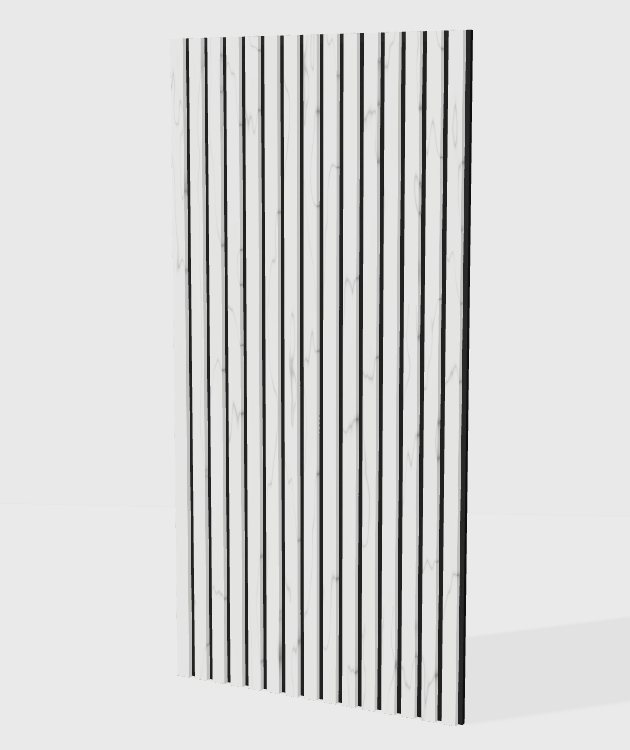

Fishbelly Grey PS001
A white marble with soft grey veining.
PVC marble · Square, arc or 45° bevel edge
Add to my quote -

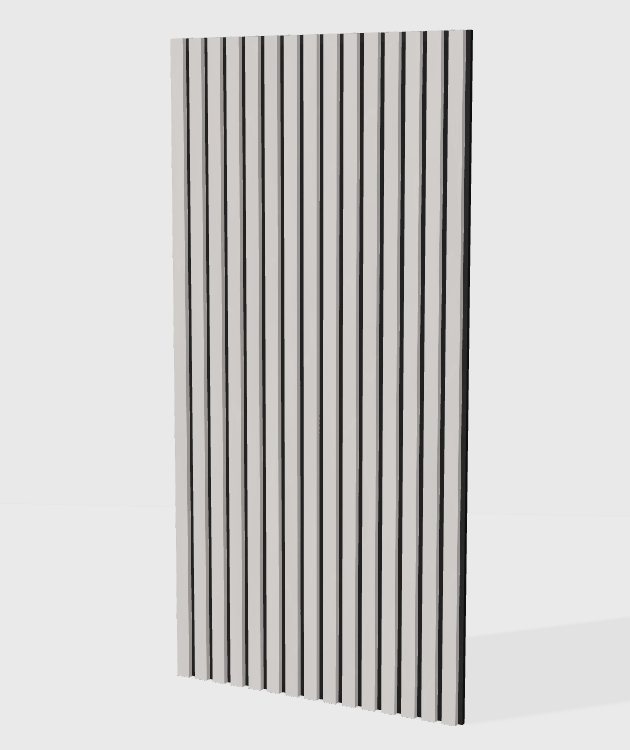

Ivory Yellow PS002
A warm grey stone with a faint cloud.
PVC marble · Square, arc or 45° bevel edge
Add to my quote -

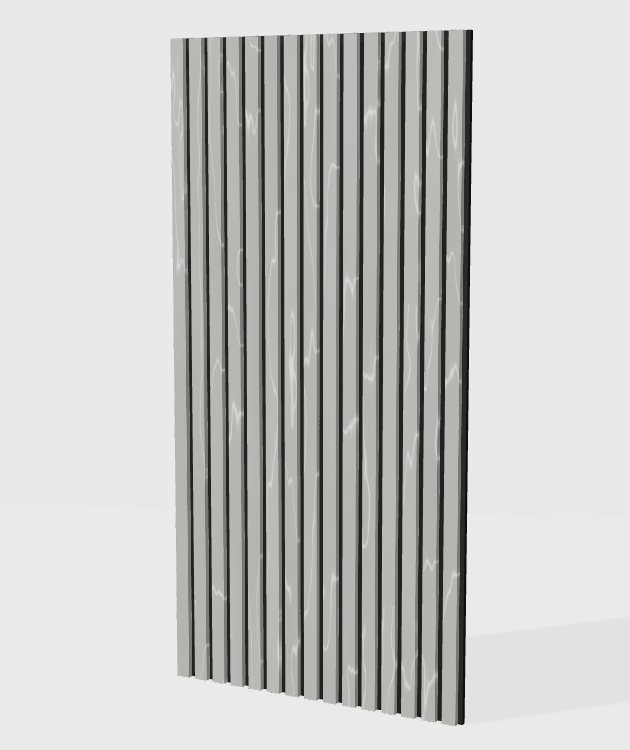

Cyprus Grey PS003
A green-grey marble with fine veins.
PVC marble · Square, arc or 45° bevel edge
Add to my quote -

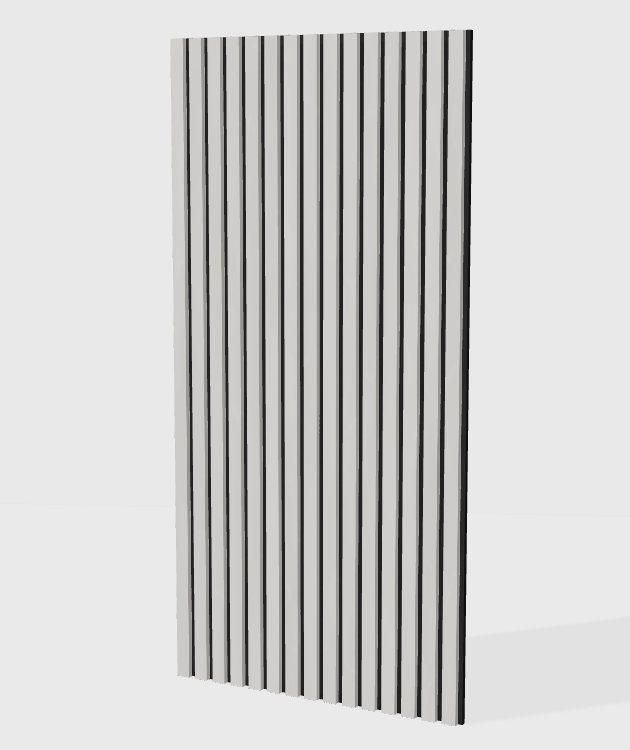

Armani Grey PS004
A light grey stone, subtly mottled.
PVC marble · Square, arc or 45° bevel edge
Add to my quote -
Obsidian Ash PS005
A dark ash-grey stone.
PVC marble · Square, arc or 45° bevel edge
Add to my quote -

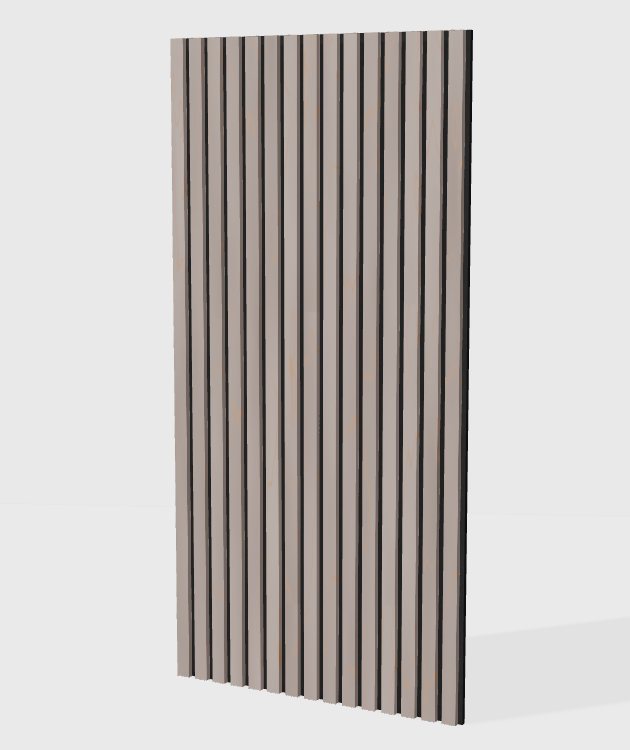

Marble Coffee PS006
A brown marble with warm veining.
PVC marble · Square, arc or 45° bevel edge
Add to my quote -
Laurent Gold Grey PS007
A grey marble with fine gold veins.
PVC marble · Square, arc or 45° bevel edge
Add to my quote -
-
-

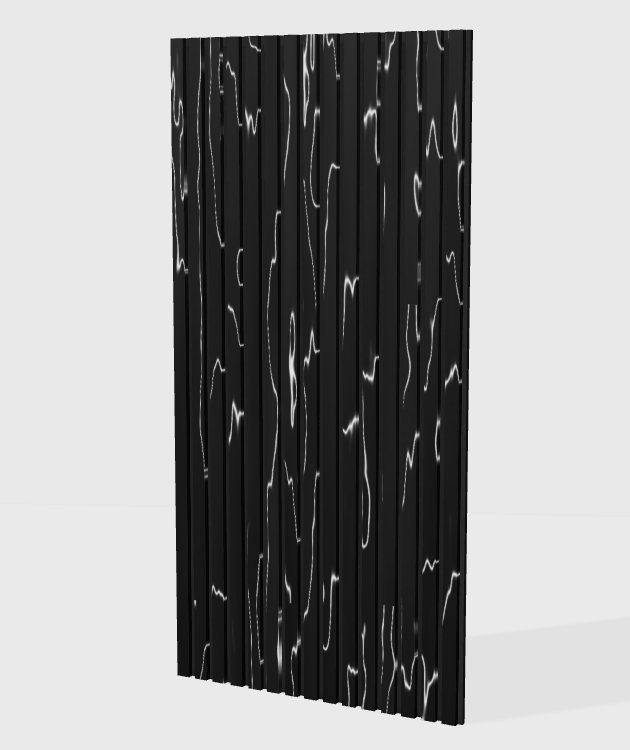

Black Jade PS010
A black marble with bold white veins.
PVC marble · Square, arc or 45° bevel edge
Add to my quote
PVC film, brushed metal
Brushed metal tones that replace real metal at lower cost and weight. Made in matte or gloss, including silver, champagne, rose and gold. Most often used in commercial spaces. 6 finishes shown.
- Standard sizes
- 2400, 2700, 2900 × 600 × 21 mm
- Available
- Square edge · Arc edge · 45° bevel · 1-side cover · 3-side cover
Melamine
A decor paper face, the same as laminate flooring. The most cost-effective face, available in thousands of colours, and resistant to scratches, water, fire and corrosion. 8 finishes shown.
- Standard sizes
- 2400, 2700, 2900 × 600 × 21 mm
- Available
- Square edge · 45° bevel · 1-side cover
- Not available
- Arc edge · 3-side cover
-
-
-
-
-
-
-

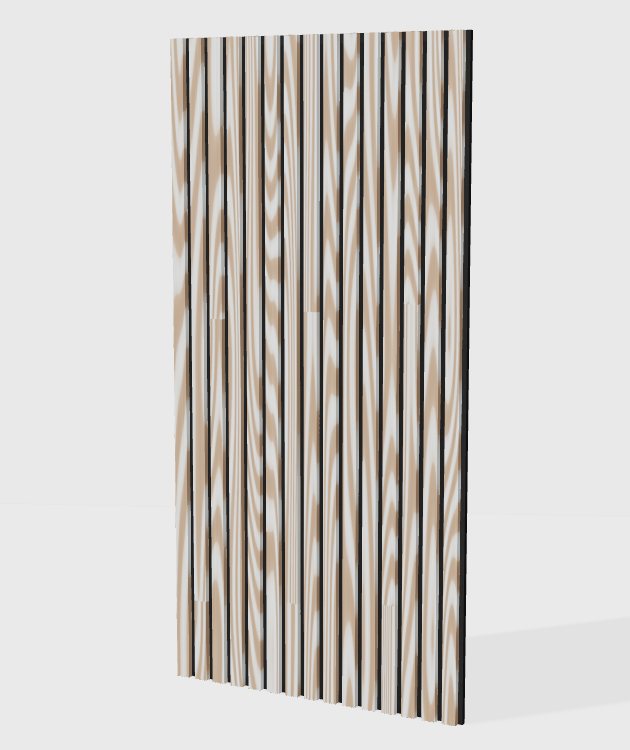

Natural Elm ML007
A characterful elm with swirling grain.
Melamine · Square or 45° bevel edge
Add to my quote -
Brown Elm ML008
A dark elm with blue resin-style streaks.
Melamine · Square or 45° bevel edge
Add to my quote
Square panels
A 600 × 600 mm square panel, made to be easy to handle. Hang squares vertically, horizontally, or alternate them in a checkerboard. Other sizes can be made. 6 finishes shown.
- Standard sizes
- 600 × 600 × 21 mm
- Available
- Square edge · Arc edge · 45° bevel · 1-side cover · 3-side cover
-
Natural Oak SQ001
A light, warm oak. 600 × 600 mm square.
Square panel · Square, arc or 45° bevel edge
Add to my quote -

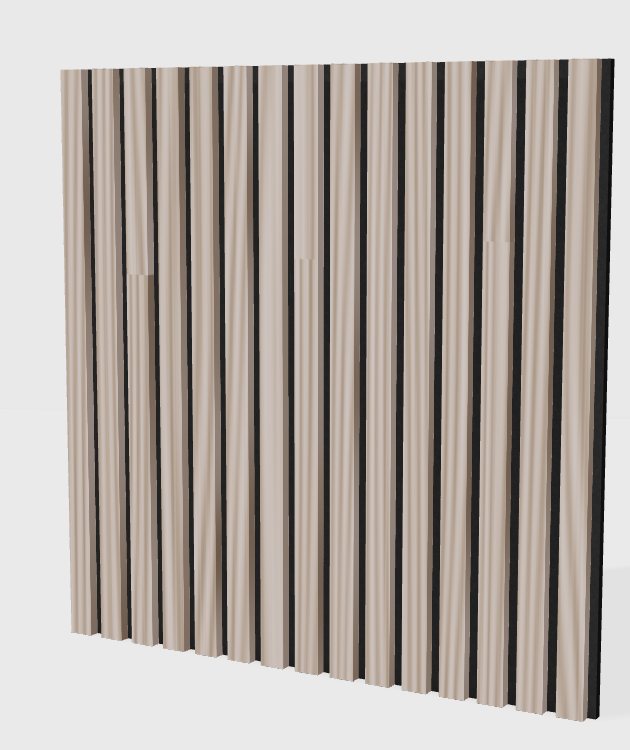

Light Walnut SQ002
A soft, greyed walnut. 600 × 600 mm square.
Square panel · Square, arc or 45° bevel edge
Add to my quote -

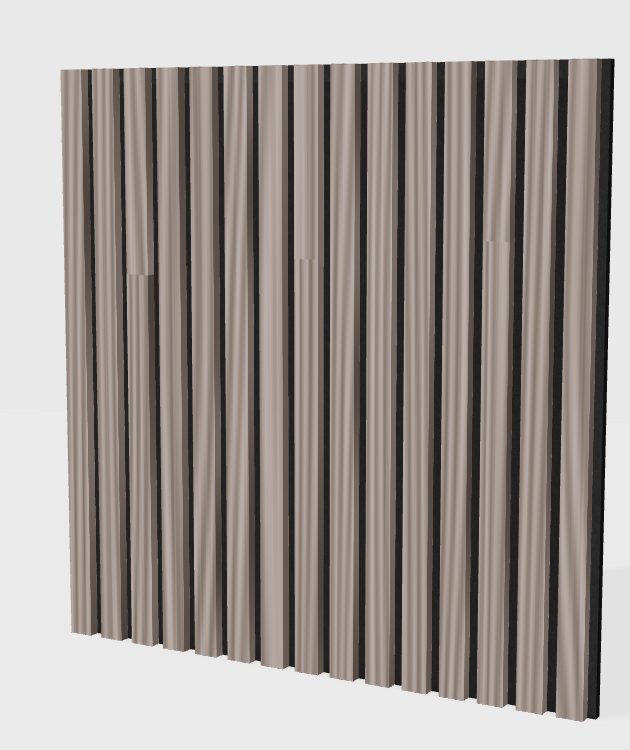

Dark Walnut SQ003
A deep chocolate walnut. 600 × 600 mm square.
Square panel · Square, arc or 45° bevel edge
Add to my quote -
Teak SQ004
A golden mid-brown teak. 600 × 600 mm square.
Square panel · Square, arc or 45° bevel edge
Add to my quote -

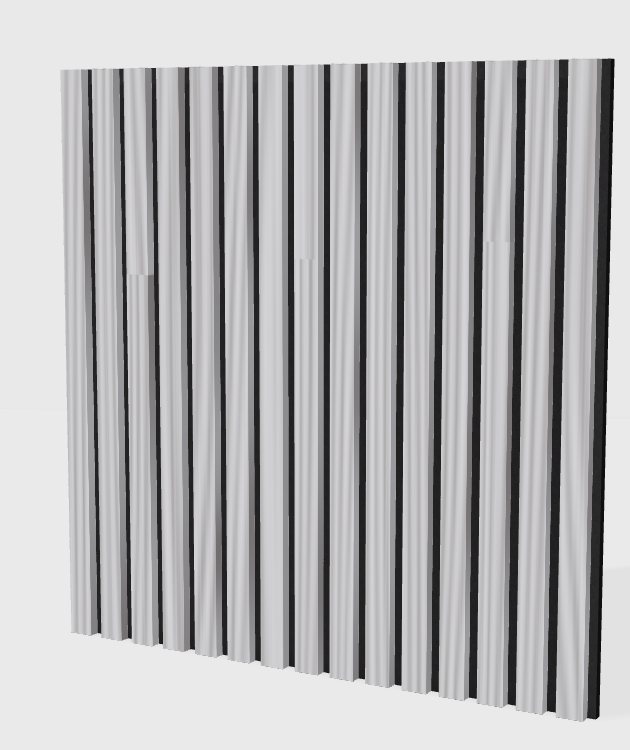

Light Grey Oak SQ005
A pale grey-washed oak. 600 × 600 mm square.
Square panel · Square, arc or 45° bevel edge
Add to my quote -

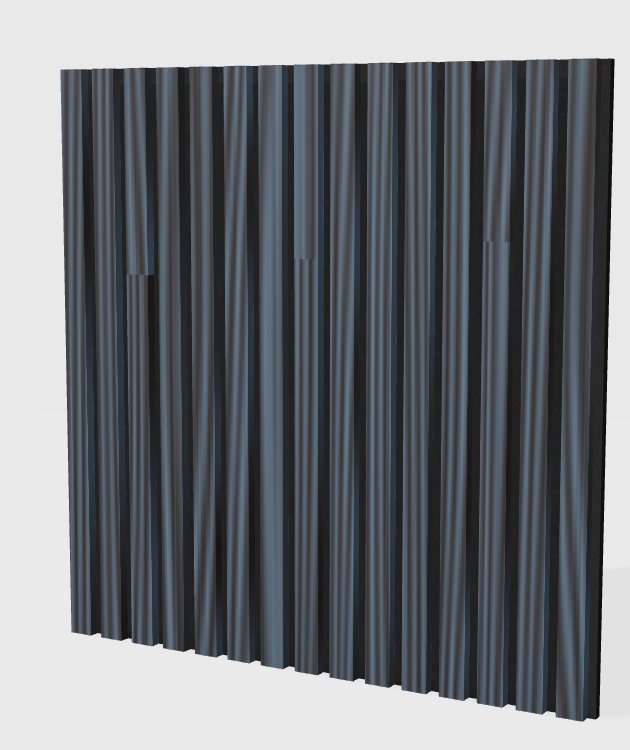

Black Oak SQ006
A near-black oak with visible grain. 600 × 600 mm square.
Square panel · Square, arc or 45° bevel edge
Add to my quote
Sculpted slats
Slats carved into shapes before they are bonded to the felt, combined into almost any pattern. An elegant statement wall that still absorbs sound. 4 finishes shown.
- Shapes

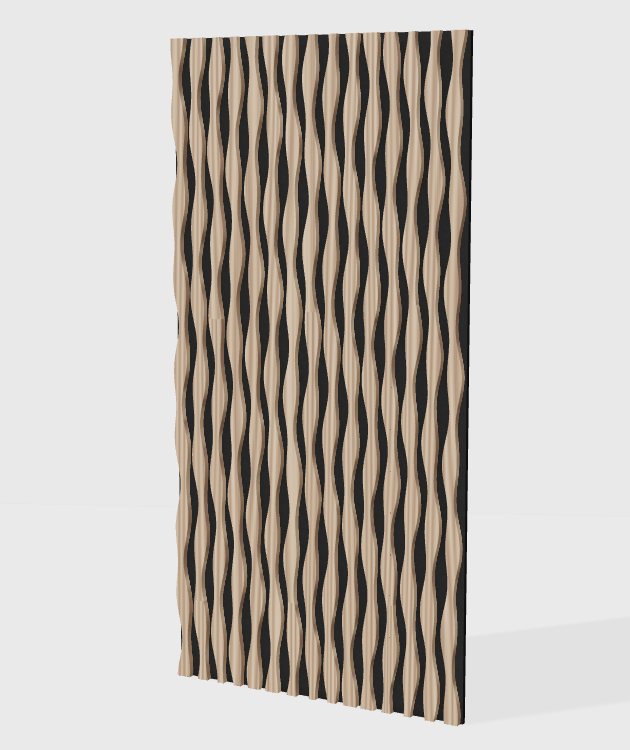

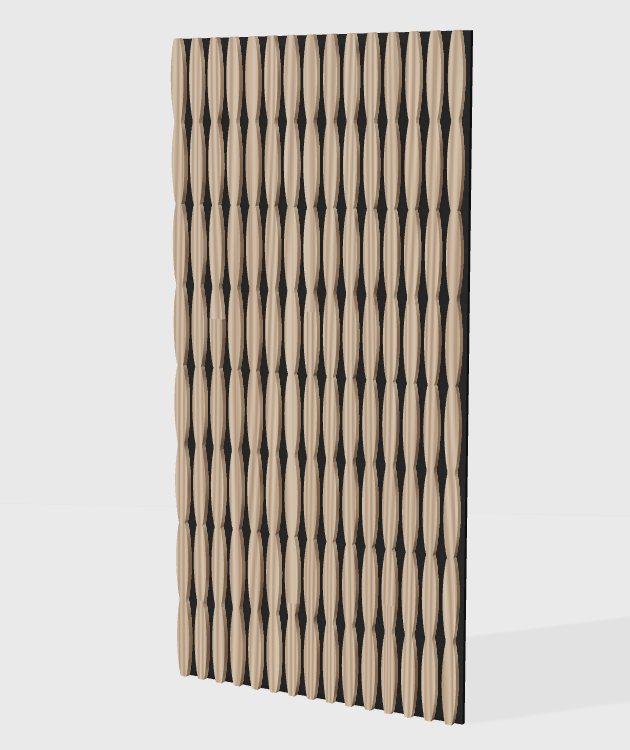

- Cable strip, bowling ball (bead), diamond check, wave; more on request
- Build
- Carved MDF slats on PET felt, faced in veneer or PVC film
- Sizes
- Made to order
-
-
-
Diamond Check SC003
Offset carving that forms a diamond check pattern.
Sculpted slat · Shaped edge
Add to my quote -
Specialty cores
Panels built on cores other than MDF. PS is waterproof, light and colourful; bamboo gives an authentic, natural look; solid hardwood and WPC are also available. PS faces come in stone, colour-fleck, wood and leather series. 5 finishes shown.
- Cores
- Bamboo, PS (polystyrene composite), solid hardwood, WPC
- PS face series
- Stone, colourful, wood and leather
- Why
- PS is waterproof and light; bamboo and hardwood are solid natural material
-
Bamboo SP001
Solid bamboo slats with visible nodes. Light and naturally hard-wearing.
Specialty core · Square edge
Add to my quote -

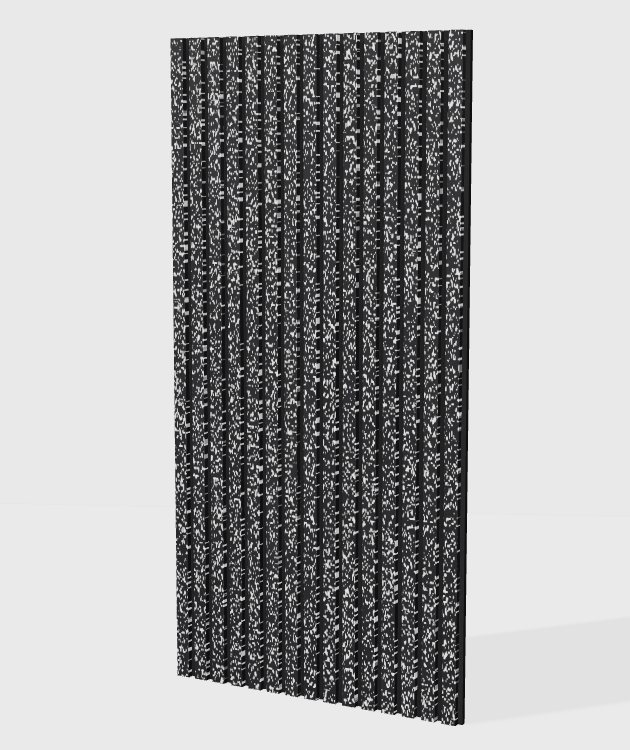

Stone Fleck SP002
A black face with a white stone fleck, on a waterproof PS core.
Specialty core · Square edge
Add to my quote -
Colour Fleck SP003
A grey face with mixed colour fleck, on a waterproof PS core.
Specialty core · Square edge
Add to my quote -
Hardwood SP004
Solid hardwood slats with a rich brown grain.
Specialty core · Square edge
Add to my quote -
Leather Grain SP005
A grey leather-grain face over a light PS core.
Specialty core · Square edge
Add to my quote
How the panels are built
Three layers: a decorative face, solid slats, and a dense polyester felt that absorbs sound and holds the slats in line.
- Decorative layer
- The face you see: technical wood veneer, natural wood veneer, PVC film, melamine, HPL or leather.
- Slat core
- Eco-friendly MDF as standard, natural (yellow) or black-dyed so the gaps read dark. Solid hardwood, bamboo, PS and WPC are also used.
- Acoustic felt
- High-density 100% polyester fibre (PET), 1350 or 1700 g/m². It absorbs sound, insulates, and is the layer you screw through to fix the panel.
| Layer | Material | Colour | Thickness |
|---|---|---|---|
| Decorative layer | Wood veneer, PVC film, melamine, HPL, leather, etc. | Wood, marble, solid colour, metal, cloth, leather, etc. | Wood veneer 0.25, 0.4 or 1 mm; PVC film 0.14 or 0.16 mm |
| MDF slat (core) | MDF, formaldehyde grade E1, E0 or P2. Also solid hardwood, bamboo, PS or WPC | Natural (yellow) or black-dyed MDF | 9, 12 or 15 mm |
| Acoustic felt (backing) | 100% polyester fibre (PET), density 1350 or 1700 g/m² | Black as standard; light grey, dark grey, coffee and others | 6, 7, 8, 9 or 10 mm |
Edges, covers, layouts and shapes
Every option below can be combined with most faces. The table shows exactly which.
Slat edge
Face cover
What’s available on each face
| Face | Standard sizes | Square | Arc | 45° bevel | 1-side | 3-side |
|---|---|---|---|---|---|---|
| Technical wood veneer | 2400, 2700, 2900 × 600 × 21 mm | ✓ | ✓ | ✓ | ✓ | ✓ |
| Natural wood veneer | 2400, 2700, 2900 × 600 × 21 mm | ✓ | ✓ | ✓ | ✓ | ✓ |
| PVC film (all series) | 2400, 2700, 2900 × 600 × 21 mm | ✓ | ✓ | ✓ | ✓ | ✓ |
| Melamine | 2400, 2700, 2900 × 600 × 21 mm | ✓ | – | ✓ | ✓ | – |
| Square panels | 600 × 600 × 21 mm | ✓ | ✓ | ✓ | ✓ | ✓ |
Slat layouts (to scale)
Each standard panel is 600 mm wide and 21 mm thick. One long edge has 5 mm of bare felt; on the other, the last slat overhangs so it covers the joint with the next panel. For large walls choose 27/19.15; for smaller rooms 27/13.
Slat shapes
Full specification
Everything that can be specified. We confirm the exact build for each wall on your quote.
| Specification | Detail |
|---|---|
| Decorative face | Technical wood veneer, natural wood veneer, PVC film, melamine, HPL, leather, etc. |
| Core | MDF as standard; solid hardwood, bamboo, PS or WPC |
| Backing | 100% polyester fibre acoustic felt (PET) |
| Slat thickness | 9 mm (0.35″), 12 mm (0.47″) or 15 mm (0.59″) |
| Slat width | 25 mm (0.98″), 27 mm (1.06″) or 35 mm (1.38″) |
| Gap between slats | 13 mm (0.51″), 15 mm (0.59″) or 19.15 mm (0.75″) |
| Felt thickness | 6, 7, 8, 9 or 10 mm (0.24″ to 0.39″) |
| Panel length | 600, 1200, 2400, 2500, 2600, 2700, 2800, 2900 or 3000 mm (23-5/8″ to 118-1/8″) |
| Panel width | 600, 520, 400 or 280 mm (23-5/8″, 20-1/2″, 15-3/4″ or 11″) |
| Standard thickness | 21 mm (0.83″): 12 mm MDF slat on 9 mm felt |
| Felt edge | 5 mm of bare felt on one long edge, so the next panel’s overhanging slat covers the joint |
| Formaldehyde | EN 717-1 Class E0; ASTM D6007-22 P2 (CARB Phase 2 level) |
| Sound absorption | Class A to EN ISO 354:2003 |
| Marks shown by the manufacturer | CE, ISO, CARB, FSC, SGS, California Prop 65. Certificates available on request |
| Features | Sound absorption, easy installation, light weight, decorative |
| Use | Accent walls, feature walls, TV and headboard walls, ceilings |
| Typical spaces | Hotel lobbies, corridors, conference rooms, recording rooms and studios, homes, shopping malls, schools and offices |
Coverage per panel
| Panel | Covers |
|---|---|
| 2400 × 600 mm | 1.44 m² · 15.5 sq ft |
| 2700 × 600 mm | 1.62 m² · 17.4 sq ft |
| 2900 × 600 mm | 1.74 m² · 18.7 sq ft |
| 600 × 600 mm | 0.36 m² · 3.9 sq ft |
Full-container quantities
| Panel | 20 ft container | 40 ft high cube |
|---|---|---|
| 2400 × 600 × 21 mm | 246 cartons · 492 panels · 708.48 m² (7,626 sq ft) | 700 cartons · 1,400 panels · 2,016 m² (21,701 sq ft) |
| 2700 × 600 × 21 mm | 246 cartons · 492 panels · 797.04 m² (8,580 sq ft) | 580 cartons · 1,160 panels · 1,879.2 m² (20,228 sq ft) |
| 2900 × 600 × 21 mm | 246 cartons · 492 panels · 856.08 m² (9,215 sq ft) | 580 cartons · 1,160 panels · 2,018.4 m² (21,727 sq ft) |
Samples and packaging
Finish samples are 200 × 105 × 21 mm. All the finishes you choose come together in one sample box, plain or branded, ready to hand to a client.
Strong 5-ply cartons, 2 panels per carton as standard (1, 3 or 4 on request), plain or printed with your logo. Larger orders ship on pallets.
| Package | What’s in each carton |
|---|---|
| Standard | Panel, EPE foam sheet, panel, EPE foam sheet, with 4 corner protectors. |
| Good | Each panel shrink-wrapped, plus 1 EPE foam sheet and 4 corner protectors. |
| Top | Each panel shrink-wrapped, plus 1 EPE foam sheet, 4 corner protectors and 2 full-length edge protectors on the long sides. |
Accessories and installation
Two ways to hang a panel. Both use black screws through the felt between slats, where they disappear.
- Black screws
- Fix panels through the felt between slats, where the black head disappears.
- Mounting adhesive
- Panel adhesive for direct fixing to a flat wall.
- Single slats
- Loose slats to finish an exposed end or edge.
- Timber and click timber slats
- Solid slats for trims, returns and click-on finishing pieces.
- PET felt
- Loose felt sheet in matching colours.
- Metal U cover
- Caps an exposed panel end.
- Metal L end cap
- Finishes outside corners and exposed edges.
- WPC L end cap
- A wood-plastic corner cap for edges and corners.
- LED strip light
- Fits in the gaps between slats for back-lit or line-lit details.
Method 1: direct to a flat wall
Tools: Panel adhesive and caulking gun, pencil, spirit level, sharp knife, saw, black screws, tape measure, drill/driver
- Measure the wall height (X) and width (Y) and mark a plumb line for the first panel.
- Cut the panel to height with a saw. Cut along the felt with a knife to narrow it.
- Turn the panel face down.
- Run a zig-zag bead of adhesive along the felt.
- Turn the panel over and press it to the wall.
- Check it’s plumb with a level.
- Screw through the felt between slats: 3 screws across the panel, the first row 5 cm from the bottom and then every 57.5 cm, 15 screws on a 2400 mm panel.
- Hook the next panel’s overhanging slat over the 5 mm felt edge of the last, so the joint disappears, and repeat.
Method 2: on timber battens
Tools: Timber battens, rockwool or acoustic insulation, pencil, spirit level, sharp knife, saw, black screws, tape measure, drill/driver
- Fix horizontal battens (about 40 × 60 mm) to the wall, 52.5 cm apart on a 2400 mm-high wall, packed flat and level.
- Fill the spaces between battens with rockwool or acoustic insulation for better low-frequency absorption.
- Cut and hang the first panel plumb, screwing through the felt into every batten: 15 screws on a 2400 mm panel.
- Interlock each following panel over the felt edge of the last and finish the ends with caps or a single slat.
Where builders use them

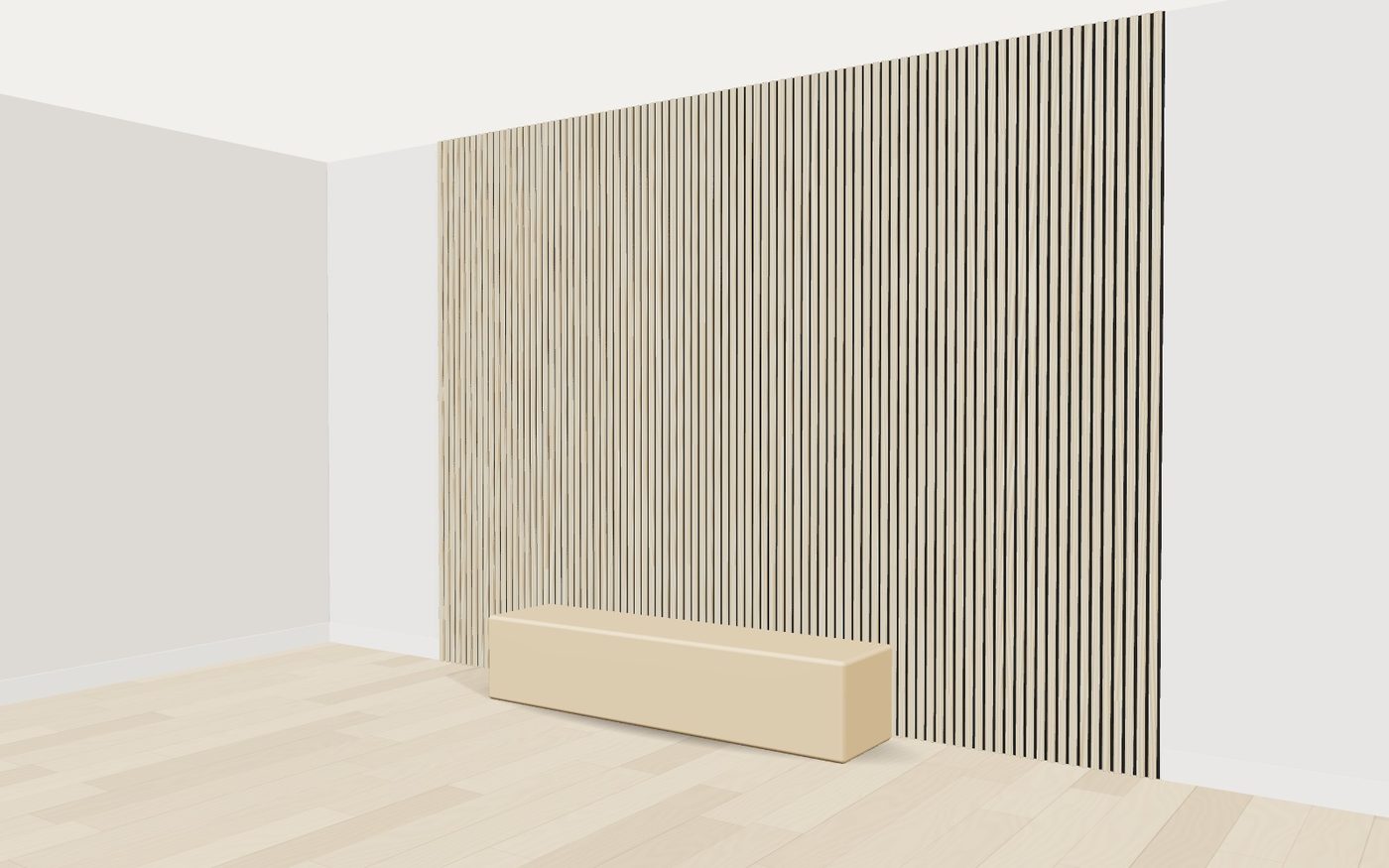

Hard floors, big windows and drywall make new buildings echo. A slat wall softens the sound and gives a plain room a finished look in one product.
- Lobbies and amenity rooms
- Party rooms, gyms and co-working spaces in MLI Select and purpose-built rental buildings, where echo is the first thing people notice.
- Suite feature walls
- A headboard wall or a TV wall in show suites and upgrade packages, quoted per unit type with the doors and trim.
- Offices and media rooms
- Boardrooms, sales centres, home theatres and studios, where clearer speech matters.
Before you specify
- They absorb, they don’t isolate. Slat panels reduce echo inside a room. They don’t replace the sound-rated wall and floor assemblies between suites.
- Check flame-spread rules in public spaces. The Ontario Building Code limits the flame-spread rating of wall and ceiling finishes in corridors, exits and some assembly spaces. Ask us for test data before specifying panels there, and confirm with your designer.
- Keep them out of wet zones. Not for showers or exterior walls.
- Let them acclimatize. Store panels flat, indoors, for a couple of days before installing so the MDF settles to the room.
Questions
How big is one panel?
Our standard panel is 2400 × 600 mm (about 7′10″ × 2′) and 21 mm thick. 2700 and 2900 mm lengths cover taller walls without a joint, and 600 × 600 mm squares suit small walls and ceilings.
Do slat panels soundproof a wall?
No. They absorb sound inside the room, which cuts echo and makes speech clearer. They don’t stop sound passing through the wall to the next suite; that is the job of the wall assembly itself. See our guide to how acoustic panels work.
How are they installed?
Glue and screw them straight onto drywall or another flat surface, or onto timber battens if the wall is uneven or you want a deeper air gap. Screws go through the felt in the gaps between slats, where they disappear.
Can they be cut?
Yes. Cut along the felt between slats with a utility knife to narrow a panel, or cut across with a fine-tooth saw to shorten it. Finish open ends with an end cap.
Can they go on a ceiling?
Yes, fixed with screws into the framing or onto battens. Adhesive alone isn’t enough overhead.
Can I use them in a bathroom?
Not in showers or other wet areas. PVC film faces and PS cores handle humidity better than veneer, so ask us if a panel is going near a bathroom or kitchen.
Can I see a sample?
Yes. Ask us for finish samples of the panels you’re considering when you request a quote.
More on acoustic panels
- How to install acoustic slat panelsGlue-and-screw and batten methods, step by step
- Do acoustic slat panels work?Echo, absorption and what they won’t fix
- Acoustic panel sizes and how many you needSizes, coverage and a panel calculator
- Acoustic panels for Ontario buildersLobbies, amenity rooms and suites across Southern Ontario
Add a slat wall to your package.
Tell us the walls, the finish and the slat layout. We quote the panels per unit type or per room, with the doors and trim.
