Flush and grooved doors
12 smooth-faced doors, from plain flush to ladder and plank groove patterns. The groove is routed into the face, so it stays sharp after painting.
-
Flush Plain GF001
A smooth, flat face with no grooves. The most minimal door in the range.
Quote this door -
-

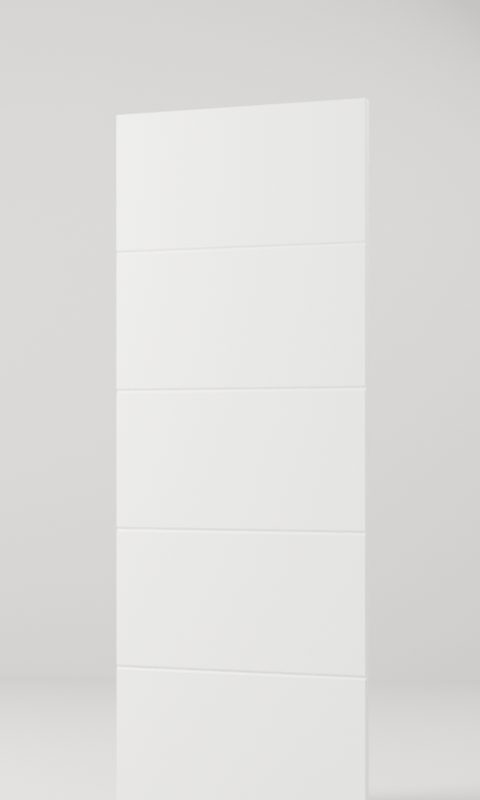

Berkley GF003
Four full-width horizontal grooves that split the face into five equal bands.
Quote this door -

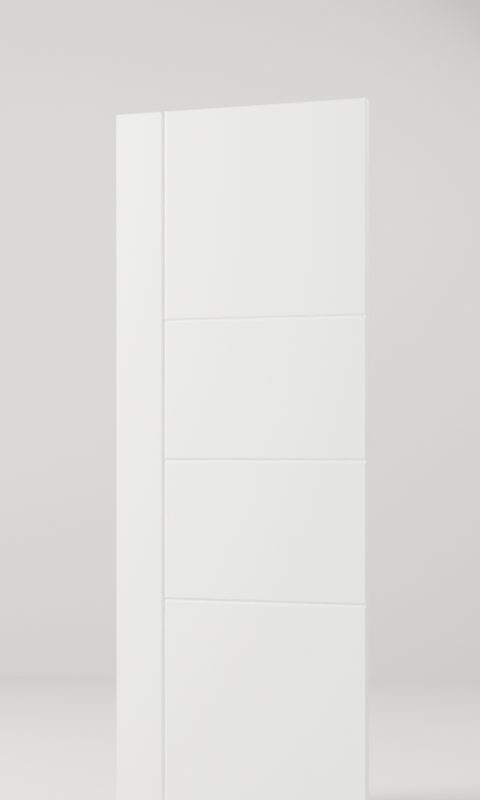

Flush Ladder GF004
One vertical groove with three horizontal grooves running off it.
Quote this door -
-
Flush Transom GF006
A horizontal groove near the top, crossed by two vertical grooves on the lock side.
Quote this door -
Flush 4-Vertical Plank GF007
Four vertical grooves that give the look of five boards.
Quote this door -
Flush Offset Split GF008
One vertical groove with a single horizontal groove at mid-height.
Quote this door -
Flush Ladder Low GF009
One vertical groove with three horizontal grooves set in the lower half.
Quote this door -
-
-
Flush Centre 6-Bar GF012
Two vertical grooves framing six closely spaced horizontal grooves.
Quote this door
Clean lines, easy upkeep
A flush door has a flat MDF skin with no raised panels to catch dust or chip. Grooves are routed into the skin after pressing, so you can keep a pattern from this page or send your own.
They suit modern rentals, condo-style interiors and student housing, where doors need to clean easily and look current for years.
| Option | What you can specify |
|---|---|
| Standard sizes | 24″, 28″, 30″, 32″ and 36″ wide × 80″ high × 1-3/8″ thick |
| Custom sizes | Widths from about 12″ to 39″, heights from 75″ to 118″, thicknesses from 1″ to 2″ |
| Core | Honeycomb, tubular particleboard, solid particleboard or solid wood |
| Internal frame | LVL, solid pine or finger-jointed pine |
| Finish | Factory white primer, ready for paint. PU, UV or water-based paint finishes on request |
| Supplied as | Slab, or prehung in a 4-9/16″ finger-jointed pine jamb. Other jamb widths made to order |
| Groove shape | U groove, square groove or V groove |
| Skin thickness | 4, 5 or 6 mm. V grooves need at least 4 mm |
| Custom pattern | Any groove layout from a drawing you send |
Where they fit
- Modern rentals
- GF003 Berkley and GF001 Flush Plain are the most common choices for mid-rise rental suites.
- Student and shared housing
- Flat faces wipe clean and repaint quickly between tenancies. Pair with a solid core on bedrooms.
- Feature doors
- Ladder and plank patterns (GF004 to GF012) give a primary bedroom or den door some character without changing the trim.
Planning a modern build?
Pick a groove pattern for the whole building, or a different one per room type. We quote it per unit type.
